Overview of the Cloud management system features

cloud4WISP incorporates all the business management features that your WISP business requires, in a simple and intuitive user interface.

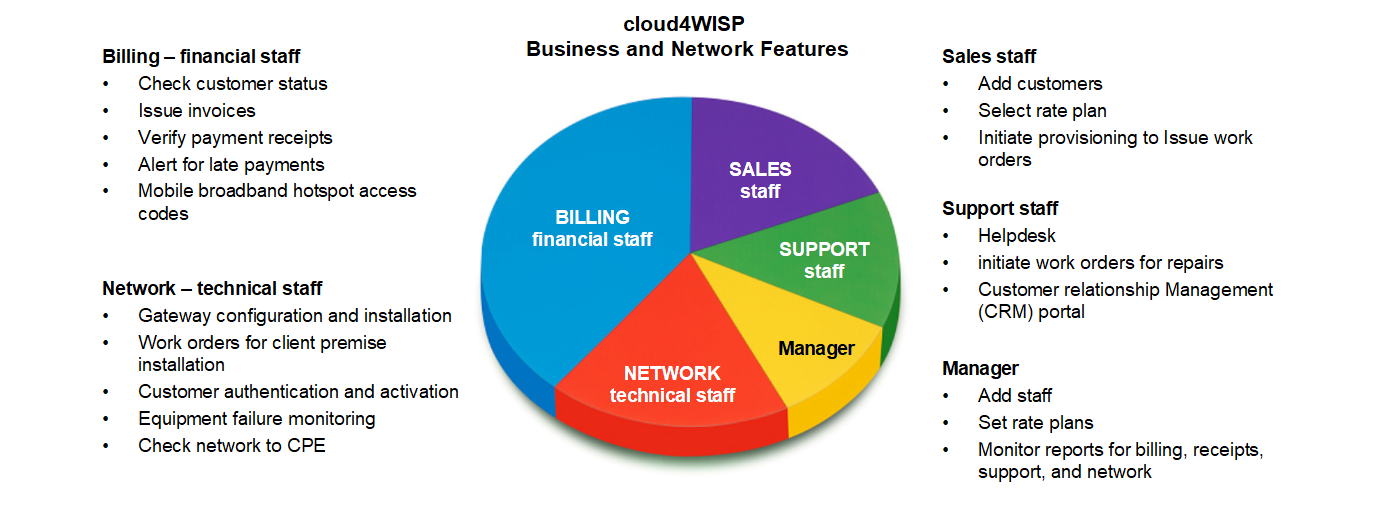

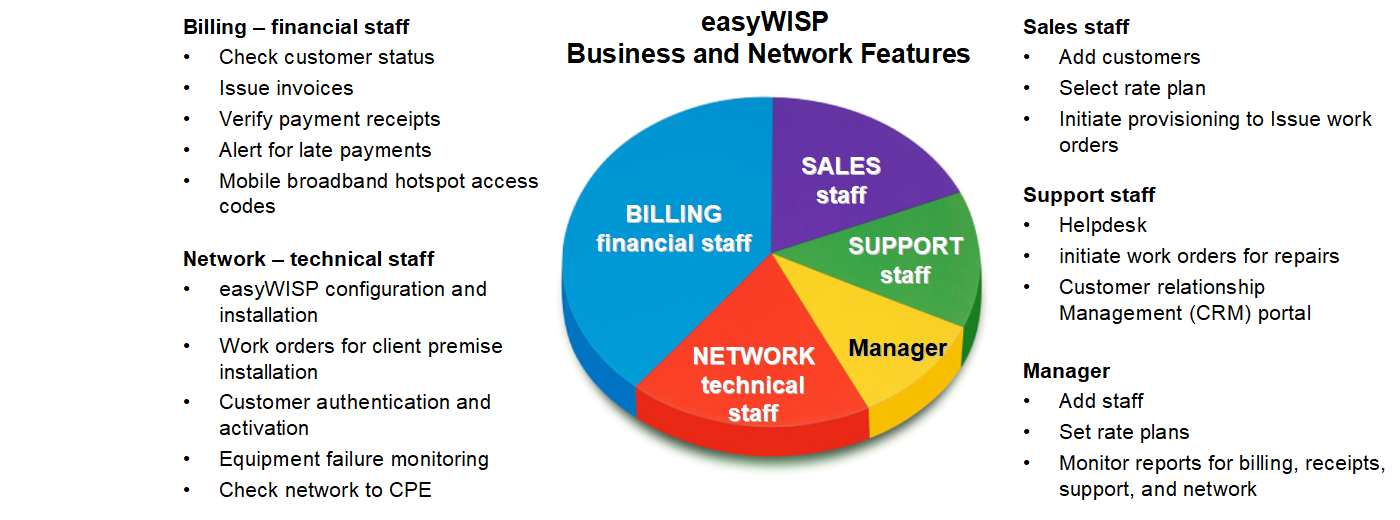

How does cloud4WISP help you

The cloud4WISP cloud subsystems

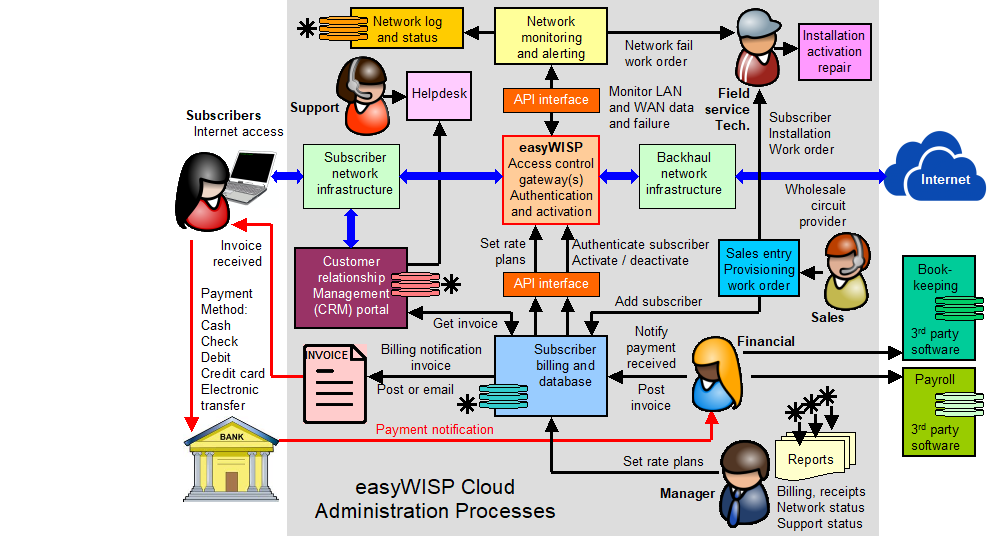

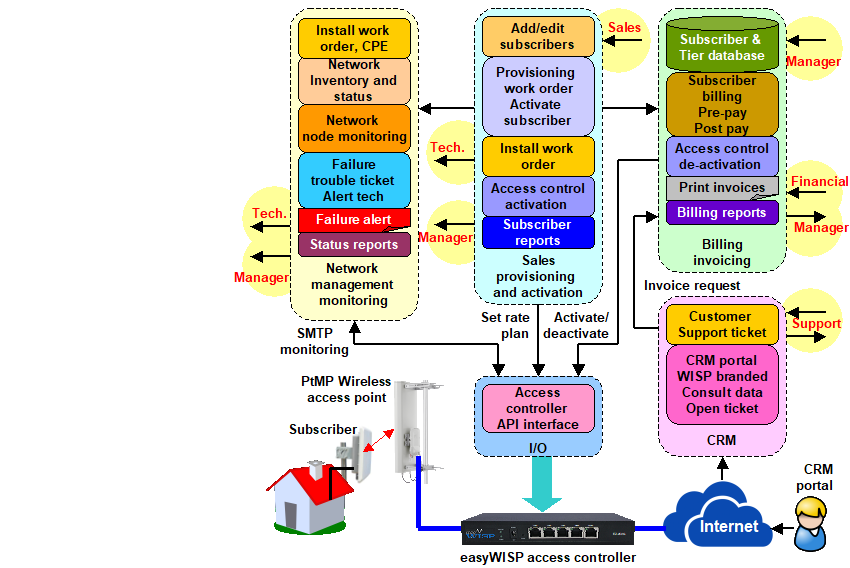

The cloud4WISP cloud management system has five subsystems that includes the API interface to one or more cloud4WISP gateways. The subsystems are shown in the diagram with the staff interfaces to each.

  • Billing and invoicing:
  • Sales provisioning and activation:
  • Network management and monitoring:
  • Customer Relationship Management (CRM) and helpdesk:
  • API interface to one or more cloud4WISP gateways:

Each function of the cloud4WISP Cloud is described in the sections which follow.

0B. The cloud4WISP cloud subsystems

cloud4WISP Cloud staff roles

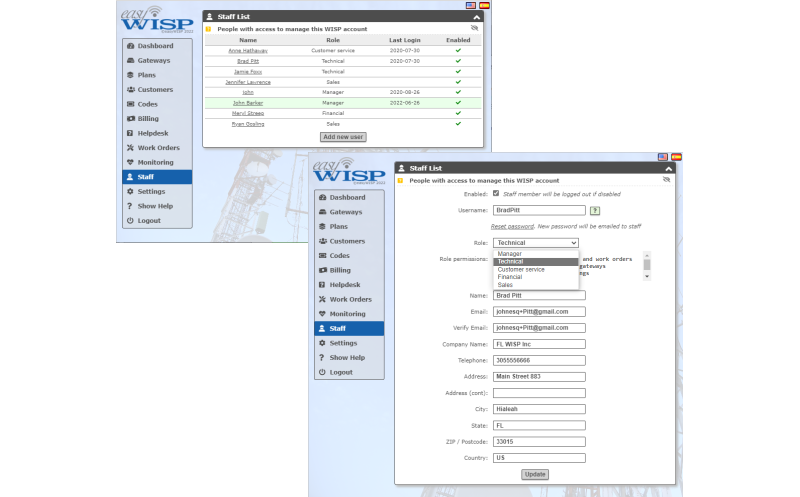

The cloud4WISP Cloud management system has five roles and each role has unique access privileges. Each role can have an unlimited number of staff login credentials.

  • Manager: responsible for adding staff, setting rate plans and analysis of operational reports.
  • Sales: responsible for acquiring new subscribers, adding subscribers to the system, initiate provisioning and generate a work order for the customer installation.
  • Customer service: responsible for the customer interface, responding to questions and helpdesk support.
  • Finance: responsible for billing and collections, issuing invoices and ensuring that subscribers pay by the due date. Financial staff also provide bookkeeping and payroll services using 3rd party software.
  • Technical: responsible for fulfilling work orders, installation of new subscribers, maintenance of existing subscribers, repairs to the network, and expansion of the network.

0C. cloud4WISP Cloud staff roles

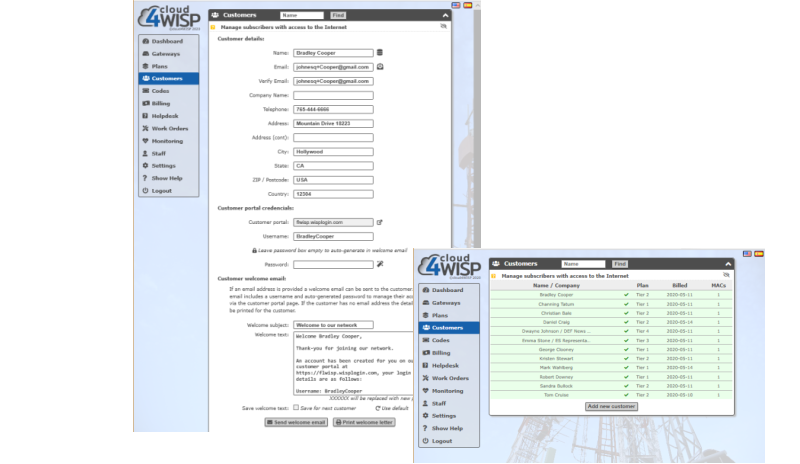

Sales staff add new subscribers and update subscriber information. The new subscriber chooses a rate-plan which is added to the customer record. Subscriber billing information is added to the billing database. Entry of a new subscriber can initiate a work order for technical staff to install the customer equipment.

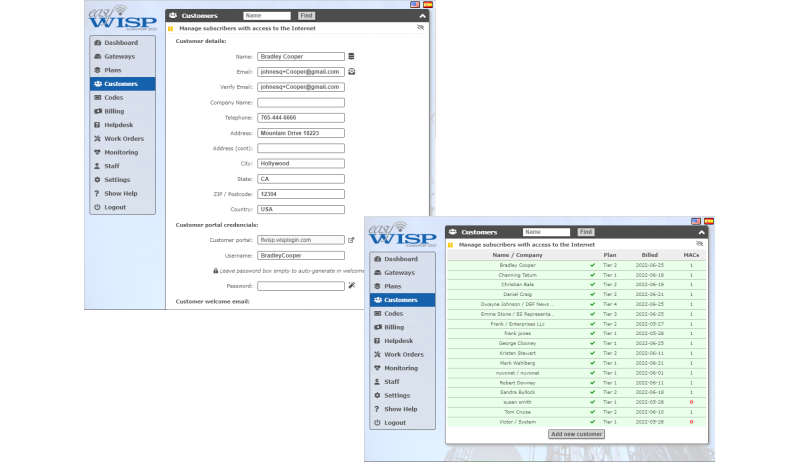

0D. cloud4WISP Sales

Provisioning the service

Entry of a new subscriber by sales staff initiates a workflow process that will generate a work order for technical staff to install the CPE wireless equipment at the subscriber premises. The technician will set the installation date then take equipment to the customers premises for installation. On completion of the installation the technician activates the subscriber and initiates the billing cycle.

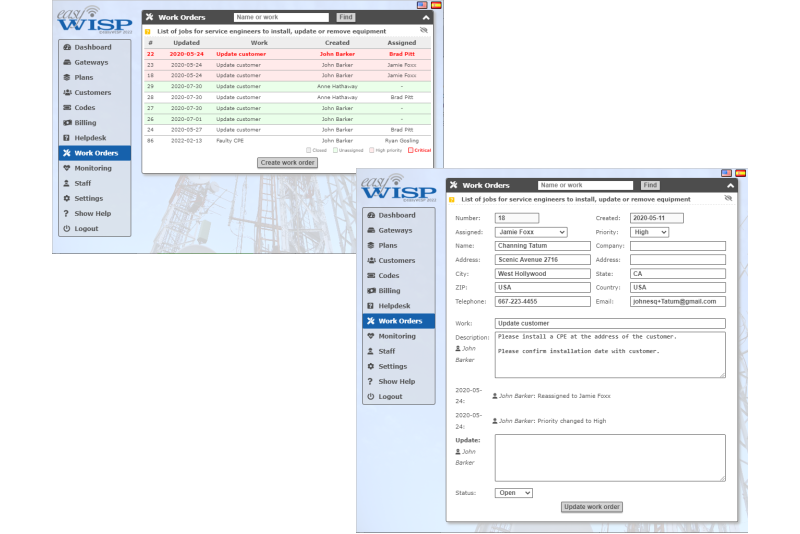

Provisioning the service screens

Rate plans

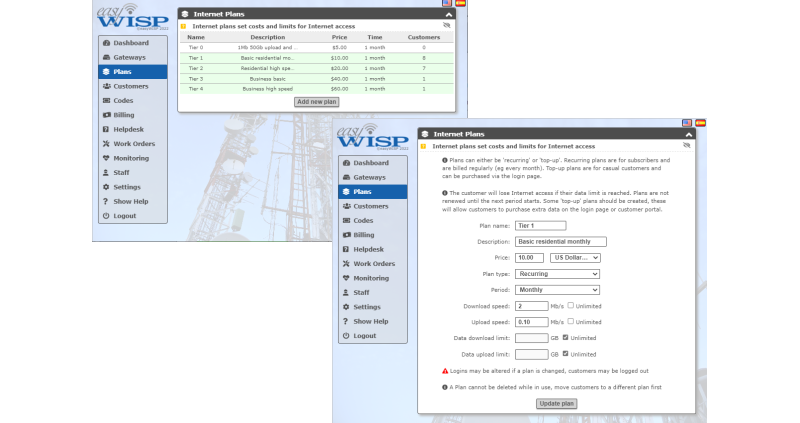

The WISP can install an unlimited number of rate plans for fixed broadband subscribers. Each rate plan specifies a maximum download / upload speed, the corresponding plan charge and an optional data cap. When enrolling a new subscriber the rate plan is chosen by the customer based on cost or data speed. Billing invoices charge the customer at the chosen rate plan value. The billing system sends the customers chosen data speed to the cloud4WISP access controller.

Some examples of rate plan tiers are:

  • Tier 1: data maximum download speed 1Mb/s, maximum upload speed 100Kb/s, monthly charge $5.
  • Tier 2: data maximum download speed 5Mb/s, maximum upload speed 500Kb/s, monthly charge $15.
  • Tier 3: data maximum download speed 10Mb/s, maximum upload speed 1Mb/s, monthly charge $25.
  • Tier 4: data maximum download speed 20Mb/s, maximum upload speed 2Mb/s, monthly charge $45.

Rate plan sreens

Subscriber billing

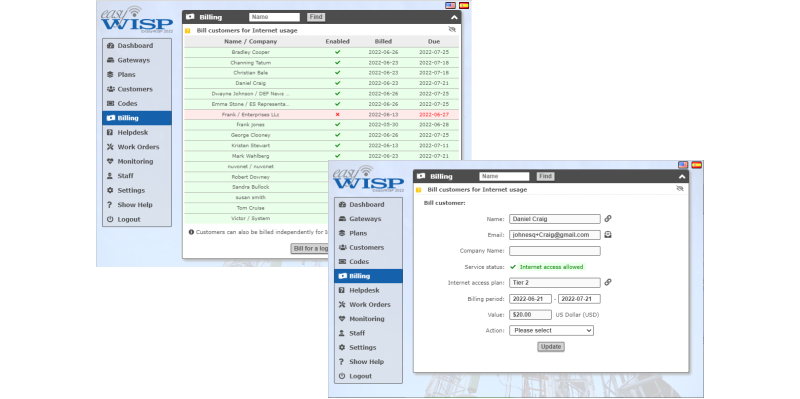

A new subscriber chooses a rate plan that is added to the subscriber’s profile. Activation of the subscriber initiates the start of the billing cycle. An invoice is issued for each billing cycle and the subscriber payment is posted in the billing system by the financial staff. The billing system sends the subscriber activation and rate plan instructions to the respective cloud4WISP access controller. In the case of late-payment the subscriber is deactivated automatically by the billing system.

0G. Subscriber billing

Mobile broadband service

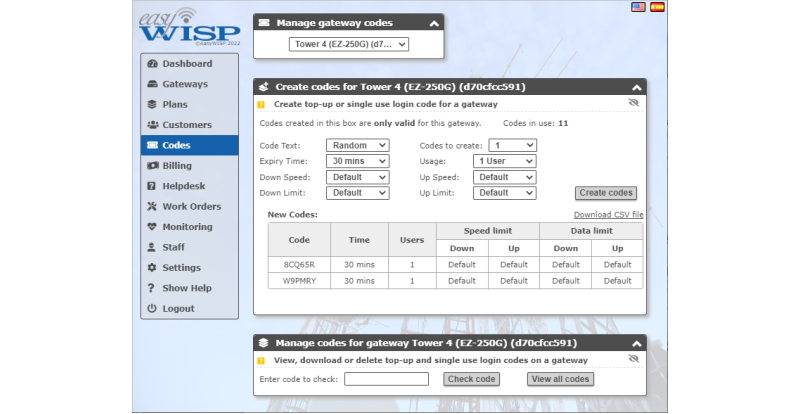

Mobile broadband provides Internet access for customers who are not subscribers. The billing system issues access codes that have the parameters of duration and data speed. The customer will access an unencrypted WiFi wireless access point using a mobile device. The cloud4WISP Cloud authenticates the access code when the customer enters the code into the login page. Mobile broadband is ideal for customers who do not want a monthly payment obligation.

Mobile broadband service

Network monitoring and alerting

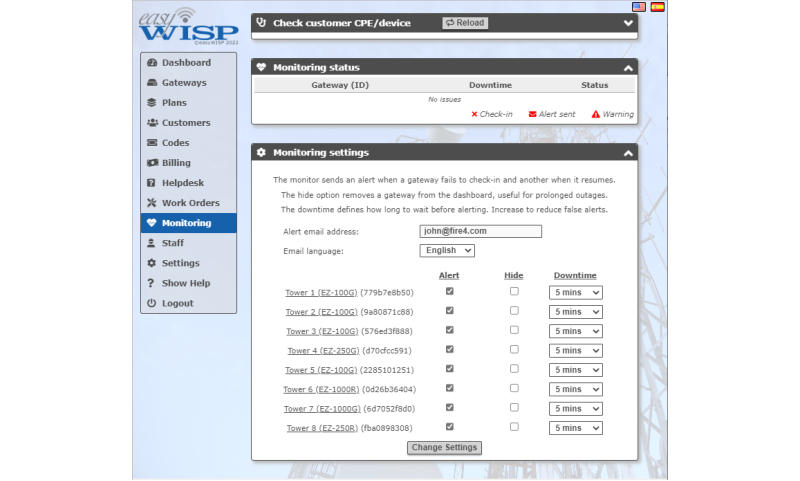

Data traffic through each cloud4WISP controller is monitored and a time graph of bandwidth use indicates when a WAN circuit is nearing congestion. The administrator can see a status report for each cloud4WISP controller. The cloud4WISP Cloud monitors all cloud4WISP controllers assigned to the account for failure and sends an email alert to the administrator if this occurs. Support staff can test the circuit to the subscriber CPE wireless when the subscriber reports no connection to identify if the problem is due to the network or at the subscribers premises.

Network monitoring and alerting

Customer Relationship Management (CRM)

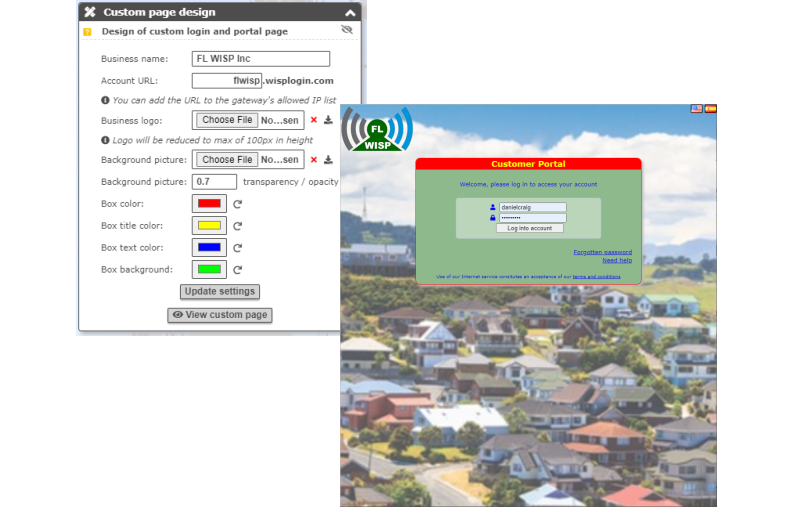

Each new subscriber receives a login credential for the CRM portal. This is a WISP branded website that the subscriber can login to see information about the account and retrieve billing invoices. The subscriber can open a customer support ticket that is sent to the support staff for answer. On-line payments can be made through the CRM portal. In the case that the Internet is not available due to circuit failure or non-payment then the captive portal displays a CRM message.

The WISP is solely responsible for answering subscriber tickets. cloud4WISP does not receive subscriber tickets.

customer relationship management (CRM)


A subscriber can initiate a support request through the CRM portal. The support request is sent to the help desk for the support staff to answer. If the support staff cannot answer the question it can be escalated to other staff; financial, technical, sales or manager. A response might require a phone call to the customer.

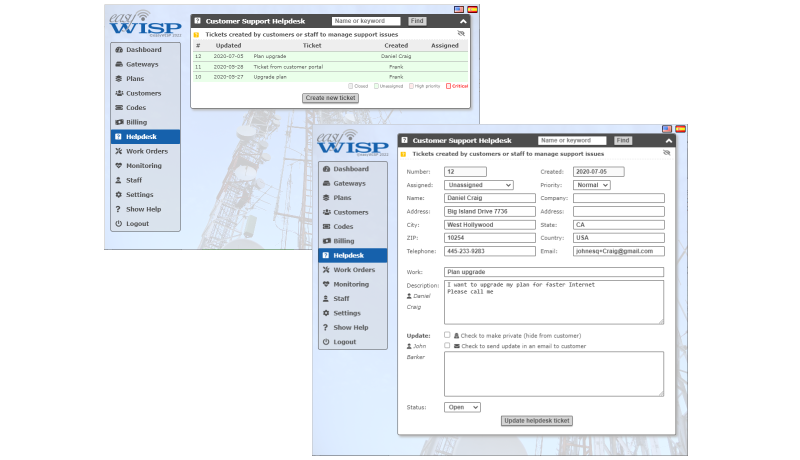

Helpdesk screens

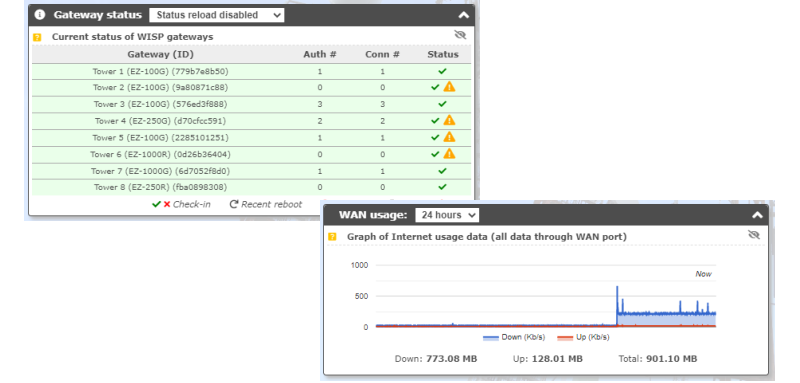

Reports are generated by the cloud4WISP Cloud to provide the WISP manager with data to monitor the performance of the business and performance of the network. The reports are listed below.

Reports for billing.

  • List of subscribers, status enabled/disabled, billed date, due date.
  • List of invoices issued to subscribers and payment status.

Reports for data traffic, time graphs can be selected from 1-hour to 1-week.

  • Time graph of an cloud4WISP gateway connected and authenticated users.
  • Time graph of an cloud4WISP gateway performance as a %.
  • Time graph of an cloud4WISP gateway backhaul WAN usage in Mb/s.
  • Authenticated user login information (currently using the network).
  • Connected user login information (connected but not currently using the network).

Reports for the network.

  • Monitoring status of all access control gateways on-line/off-line.
  • Check subscriber CPE circuit status.
  • List of outstanding work orders, see each work order status.

Reports for support.

  • List of support ticket requests via the CRM portal, see each ticket status.

Reporting screens

Installation of the Customer Premise Equipment (CPE)

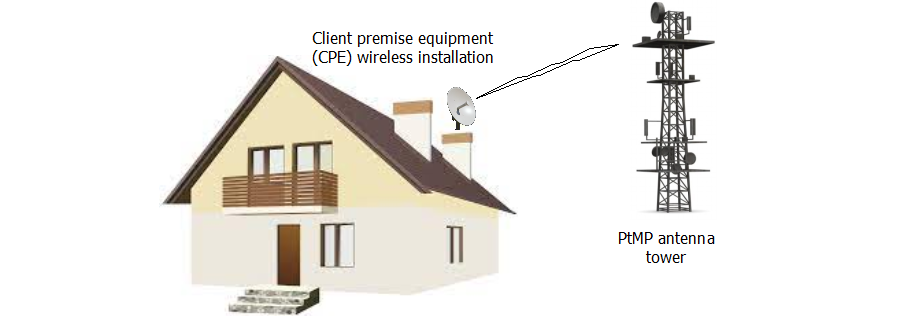

The customer requires a physical connection to the network. This requires a client premise equipment (CPE) wireless installing with line of sight connection to the Point to Multi-point (PtMP) antenna tower. The CPE wireless receiver is connected to the PtMP transmitter using the CPE software.

Installation of CPE diagram

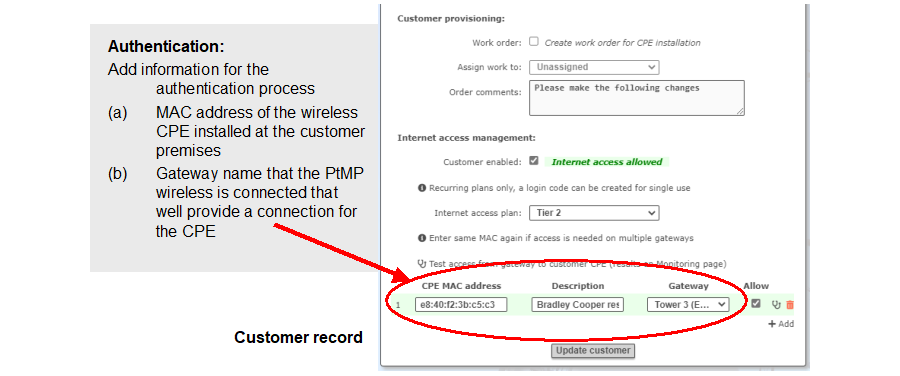

Authentication is an cloud4WISP Cloud configuration that will permit the cloud4WISP access controller to recognize the new customer CPE wireless when it connects to the network after completion of the subscriber premises installation. The cloud4WISP customer record is updated with the authentication information. cloud4WISP authenticates the subscriber using the CPE MAC address which is much simpler than other methods, making installation very easy.

Authentication screen

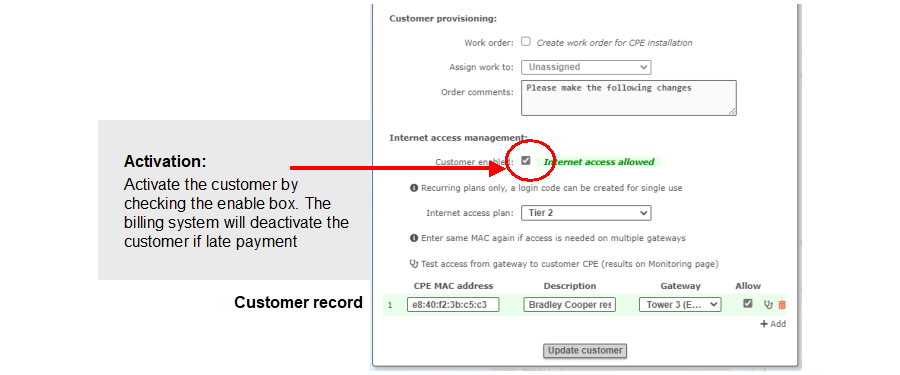

When the authentication of the customer CPE has been completed and tested then the customer can be activated. The customer record ‘enable’ box is checked to activate the customer. The customer should confirm that the Internet service is working according to the service offered and then sign off the work order to accept the installation. In the case of late payment the billing system will automatically deactivate the customer until the account is paid then it will automatically activate the customer.

Activation screen

Access control

Each cloud4WISP access controller implements nine functions:

  • Receive and process subscriber access instructions from the Cloud.
  • Authenticate each subscriber CPE onto the network.
  • Enable/disable subscriber access.
  • Apply rate plans to each subscriber.
  • Verify CPE link status on request.
  • Send the network status and traffic stats data to the cloud4WISP Cloud.
  • A captive portal provides the customer with access the the CRM UI.
  • A captive portal provides the customer with network error messages.
  • Mobile broadband authentication.

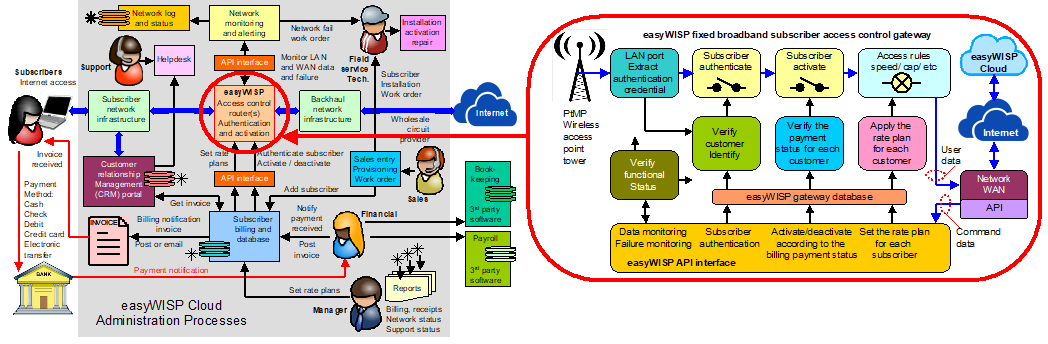

Access control diagram


Free online technical support is provided for cloud4WISP customers. Go to the cloud4WISP website support tab. The Cloud system has been designed to be very intuitive to minimize the requirement for technical support. The cloud4WISP Cloud system is multi-language and can be switched between English and Spanish. Other languages will be available.

Click on the links below to download the data sheet and the product manual. We request that WISP's read this manual carefully before contacting technical support.
